Sougata Mukherjea, James D. Foley, Scott Hudson

Graphics, Visualization & Usability Center
College of Computing
Georgia Institute of Technology

Our work concerns visualizing the information space of hypermedia systems using multiple hierarchical views. Although overview diagrams are useful for helping the user to navigate in a hypermedia system, for any real-world system they become too complicated and large to be really useful. This is because these diagrams represent complex network structures which are very difficult to visualize and comprehend. On the other hand, effective visualizations of hierarchies have been developed. Our strategy is to provide the user with different hierarchies, each giving a different perspective to the underlying information space to help the user better comprehend the information. We propose an algorithm based on content and structural analysis to form hierarchies from hypermedia networks. The algorithm is automatic but can be guided by the user. The multiple hierarchies can be visualized in various ways. We give examples of the implementation of the algorithm on two hypermedia systems.
Hypermedia, Overview Diagrams, Information Visualization, Hierarchization.


Overview diagrams are one of the best tools for orientation and navigation in hypermedia documents [17]. By presenting a map of the underlying information space, they allow the users to see where they are, what other information is available and how to access the other information. However, for any real-world hypermedia system with many nodes and links, the overview diagrams represent large complex network structures. They are generally shown as 2D or 3D graphs and comprehending such large complex graphs is extremely difficult. The layout of graphs is also a very difficult problem [1]. Other attempts to visualize networks such as Semnet [3], have not been very successful.

In [13], Parunak notes that: "The insight for hypermedia is that a hyperbase structured as a set of distinguishable hierarchies will offer navigational and other cognitive benefits that an equally complex system of undifferentiated links does not, even if the union of all the hierarchies is not itself hierarchical." Neuwirth et al. [12] also observed that the ability to view knowledge from different perspectives is important. Thus, if different hierarchies, each of which gives a different perspective to the underlying information can be formed, the user would be able to comprehend the information better. It should be also noted that unlike networks some very effective ways of visualizing hierarchies have been developed. Examples are Treemaps [7] and Cone Trees [15].

This paper proposes an algorithm for forming hierarchies from hypermedia graphs. It uses both structural and content analysis to identify the hierarchies. The structural analysis looks at the structure of the graph while the content analysis looks at the contents of the nodes. (Note that the content analysis assumes a database-oriented hypermedia system where the nodes are described with attributes). Although our algorithm is automatic, forming the "best" possible hierarchy representing the graph, the user can guide the process so that hierarchies giving different perspectives to the underlying information can be formed. These hierarchies can be visualized in different ways.

Section 2 presents our hierarchization process. Section 3 shows the implementation of the algorithm in the Navigational View Builder, a system we are building for visualizing the information space of Hypermedia systems [10], [11]. This section discusses the application of the algorithm on a demo automobile database and a section of the World-Wide Web. Section 4 discusses how the hierarchies can be transformed to other forms of data organizations. Section 5 talks about the related work while section 6 is the conclusion.


New Data Structure

For our hierarchization process we use a data structure which we call the pre-tree. A pre-tree is an intermediate between a graph and a tree. It has a node called the root which does not have any parent node. However, unlike a real tree, all its descendants need not be trees themselves - they may be any arbitrary graph. These descendants thus form a list of graphs and are called branches. However, there is one restriction - nodes from different branches cannot have links between them. An example pre-tree is shown in Figure 1. Note that pre-tree is another data structure like multi-trees [4] - it is not as complex as a graph but not as simple as a tree. Also note that although the term ``pre-tree'' has not been used before, this data structure has a long history in top-down clustering techniques [5]. Top-down clustering would often be halted when new divisions were not auspicious, leaving a final structure which is essentially a pre-tree.

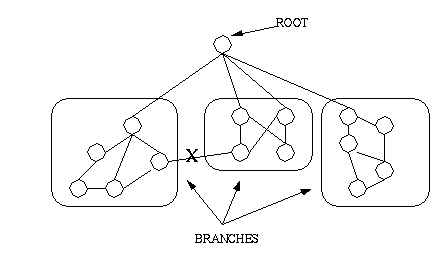

FIGURE 1: An example pre-tree. It has a root node which does not have any parent. The descendants of the root node are graphs. However, none of these graphs have any links between them. Our hierarchization algorithm tries to identify the best pre-tree to represent the given graph. The final tree is formed by calling the algorithm recursively for the branches.

Hierarchization Algorithm

The algorithm tries to identify a suitable pre-tree from a given graph. Thus a root node is identified and the other nodes are partitioned into branches. This root node forms the root of the final hierarchy. The algorithm is recursively called for each of the branches and the trees formed by these recursive calls become children of the root of the final hierarchy. The recursion stops if a branch has very few nodes or the required depth of the final tree has been reached. It may also happen that for certain branches, no suitable pre-trees can be formed. In these cases, the nodes of the branches become children of the parent of the branch. (This case generally occurs for branches with very few nodes).

For identifying potential pre-trees both content and structural analysis are used.

Both content and structural analysis can identify several potential pre-trees. A metric is used to rank these pre-trees. The metric consists of the following submetrics: Each submetric returns a number between 0 and 1. The overall metric is calculated by a weighted sum of the submetrics where the weight is determined by the relative importance of the submetrics.

The Role of the User

By default, the entire process would be automatically forming the "best" hierarchical form for the original graph. However, the user can guide the process both during the translation of the graph to a tree and during the visualization of the tree.


The algorithm has been implemented in the Navigational View Builder, a system for forming overview diagrams of hypermedia systems. Figure 2 represents an overview diagram of an automobile database. There are a lot of interconnected nodes showing, for example, textual information about the cars, images of the cars, TV advertisements and audio of previous buyers' comments. There are also links to other cars with similar price and other models by the same manufacturer. From this complex network a hierarchy can be formed automatically. The top-level root of this tree and its children are shown in the left hand screen of Figure 3. In this case, the attribute Price was used to form the initial partitioning and the root represents a cluster for all the nodes.

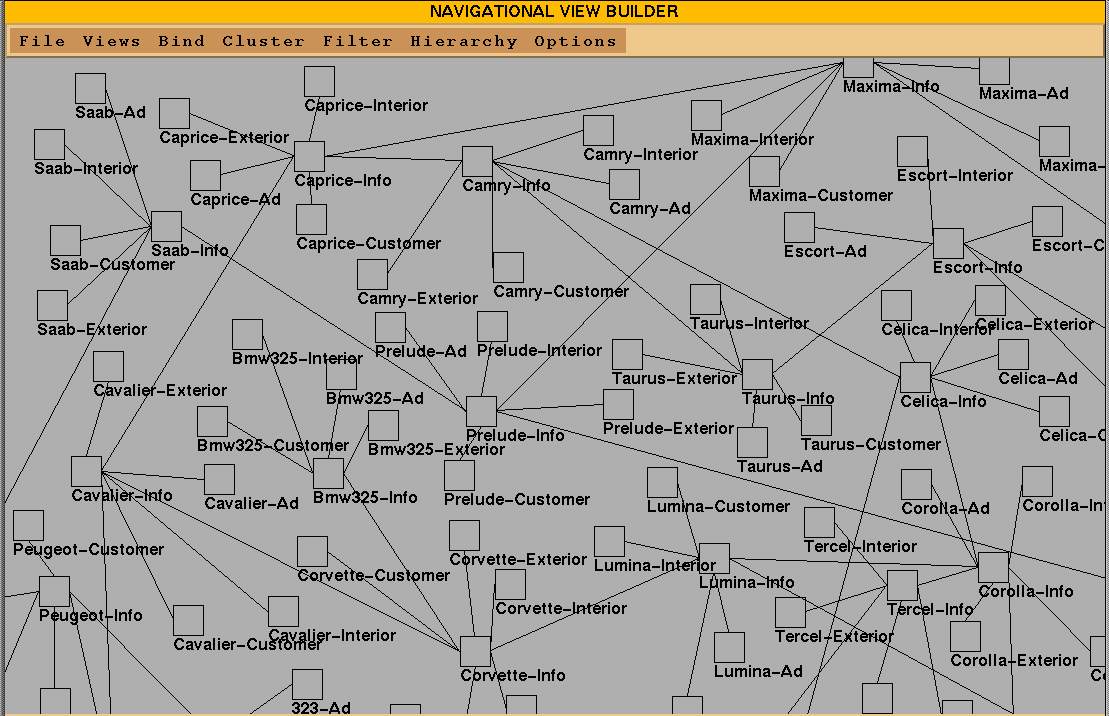

FIGURE 2: An overview diagram of an automobile database. The diagram is very difficult to comprehend.

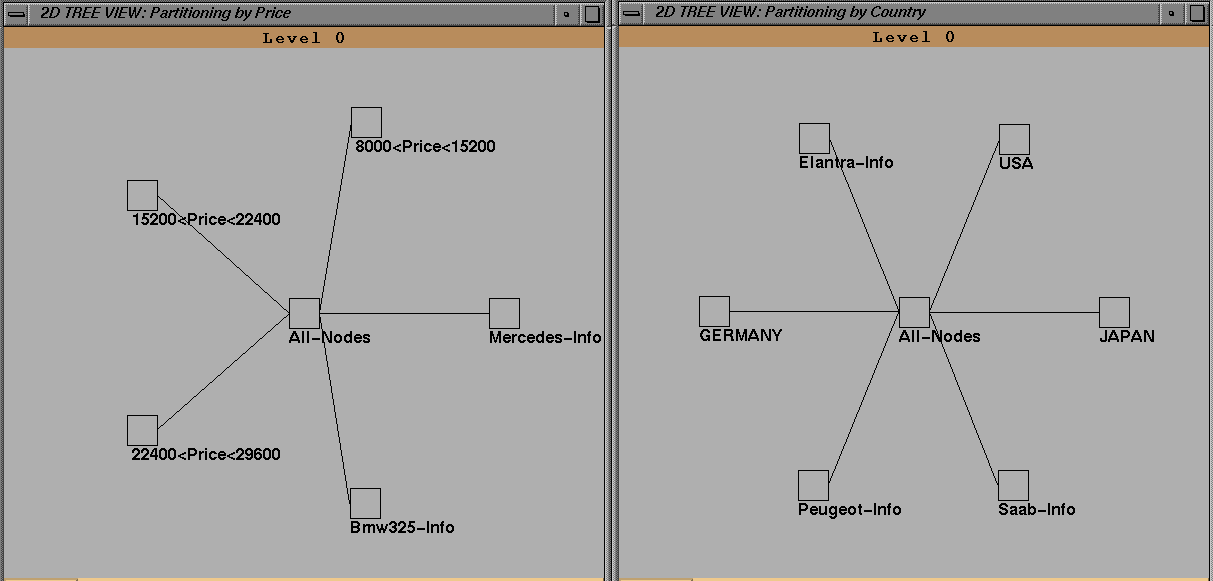

FIGURE 3: The left hand screen shows the default tree formed for the automobile database. The top-level partitioning is by the attribute Price. The right hand screen shows the tree formed if the top-level partitioning is done by the attribute Country.

The user can form different hierarchies by selecting other pre-trees. For example, if the user wanted to select the pre-tree at the initial level, the dialog box shown in Figure 4 pops up. If the user wants to partition based on the attribute Country, the tree shown in the right hand screen in Figure 3 is formed. In this figure some of the children represents clusters for countries. For example the node labeled Japan represents all the Japanese cars and its children are shown in the left hand screen of Figure 5. Here the partitioning is done by the attribute Manufacturer. For some other countries the nodes in the cluster formed a tree. In these cases the roots of the tree were identified by structural analysis and they became the children of the overall root. Thus for Sweden, Saab-Info is the root of the tree for all nodes related to Swedish cars. Its children are shown in the right hand screen of Figure 5.

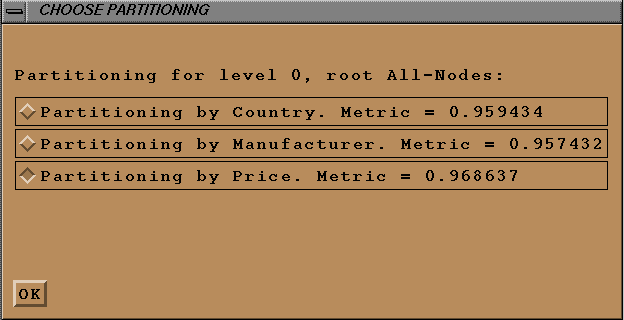

FIGURE 4: At each level various pre-trees can be used. A metric ranks these pre-trees. By default the pre-tree with the best metric is selected. However, the user can select others using the above menu.

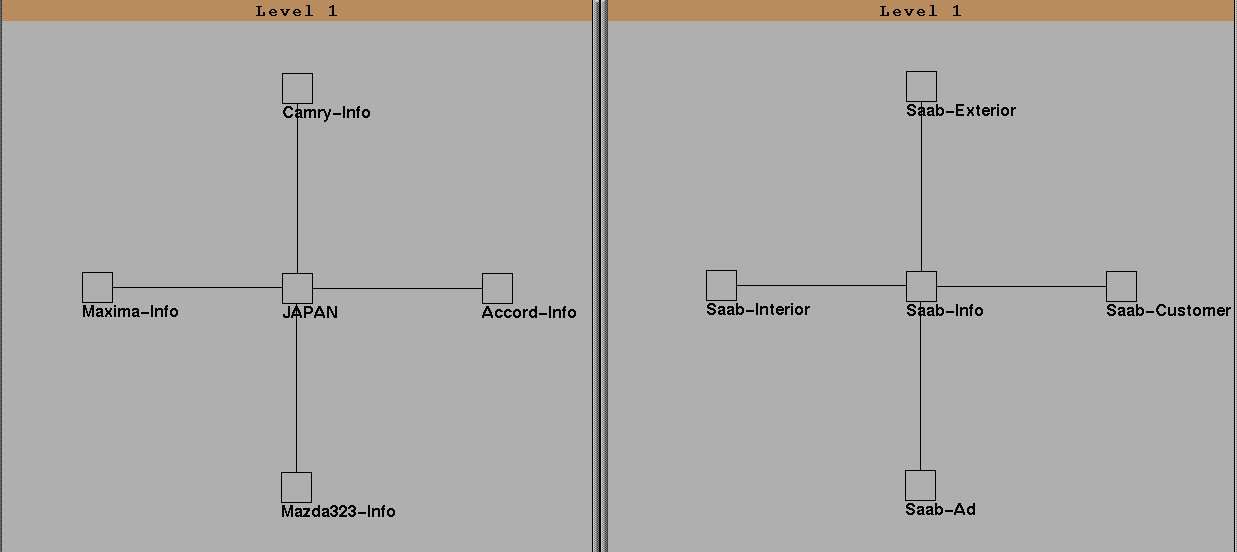

FIGURE 5: Examples of Content and Structural analysis for forming pre-trees. The left hand screen represents the nodes for Japan. The root is a cluster representing all Japanese cars. The nodes are partitioned by the attribute Manufacturer. The right hand screen is for Swedish cars. These nodes form a tree with the node Saab-Info as the root.

Figure 6 shows a 3D Tree view of this hierarchy. In this view, the colors of the nodes represent various countries and the colors of the links represent link types. Various zooming and filtering operations that are mentioned in [15] are possible for this 3D tree. Moreover, smooth animation is used so that the view changes are not abrupt and allow the user to see the changes easily. (Note that the implementation is done using C++, Motif and Open Inventor [18].)

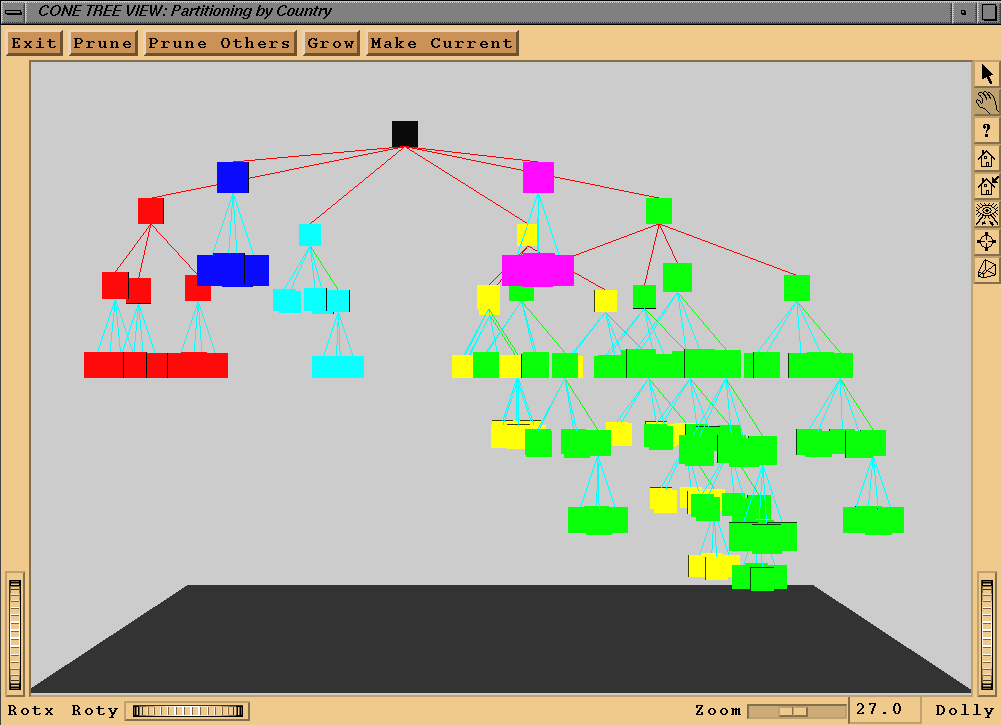

FIGURE 6: A 3d tree View of a hierarchy of the automobile database. Initial partitioning by the attribute Country. Node colors represent different countries and the link colors different link types.

Forming Hierarchies in the World-Wide Web

Let us now look at an example from perhaps the most popular hypermedia system, the World-Wide Web. For input to the Navigational View Builder, information was automatically extracted from the WWW about the various files, their authors, their links to other files and other information by parsing the HTML documents using the method described in [14]. Figure 7 shows an unstructured overview diagram of the WWW pages about the research activities at the Graphics Visualization & Usability (GVU) Center at Georgia Tech. (URL: http/::/ Obviously, this information is very complicated.

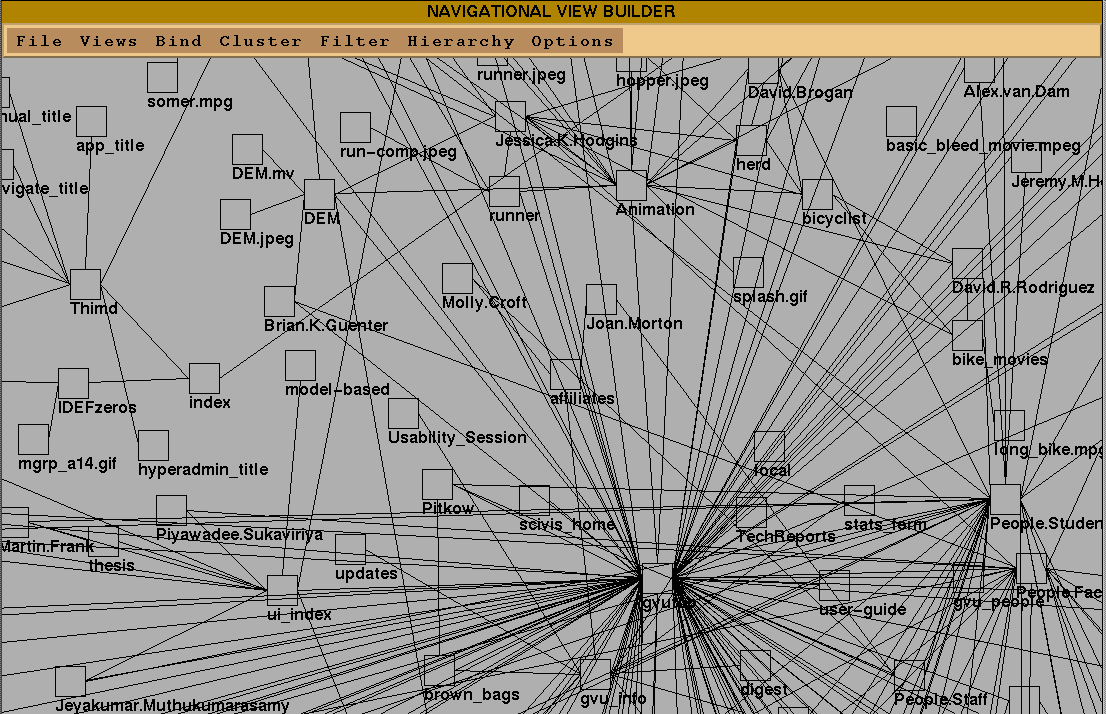

FIGURE 7: An overview diagram of the World-Wide Web pages about the research activities at GVU. It indicates clearly why traditional overview diagrams are useless for real-world hypermedia systems.

The left hand screen of Figure 8 shows the top level of the hierarchy automatically created for the data by the system. The file research.html which lists the various research activities of the GVU Center is the root. It has branches to the major research area as well as to gvutop.html, a file containing general information about GVU. The right hand side of Figure 8 shows a view of a section of this hierarchy where the nodes are listed as a table of content of a book.

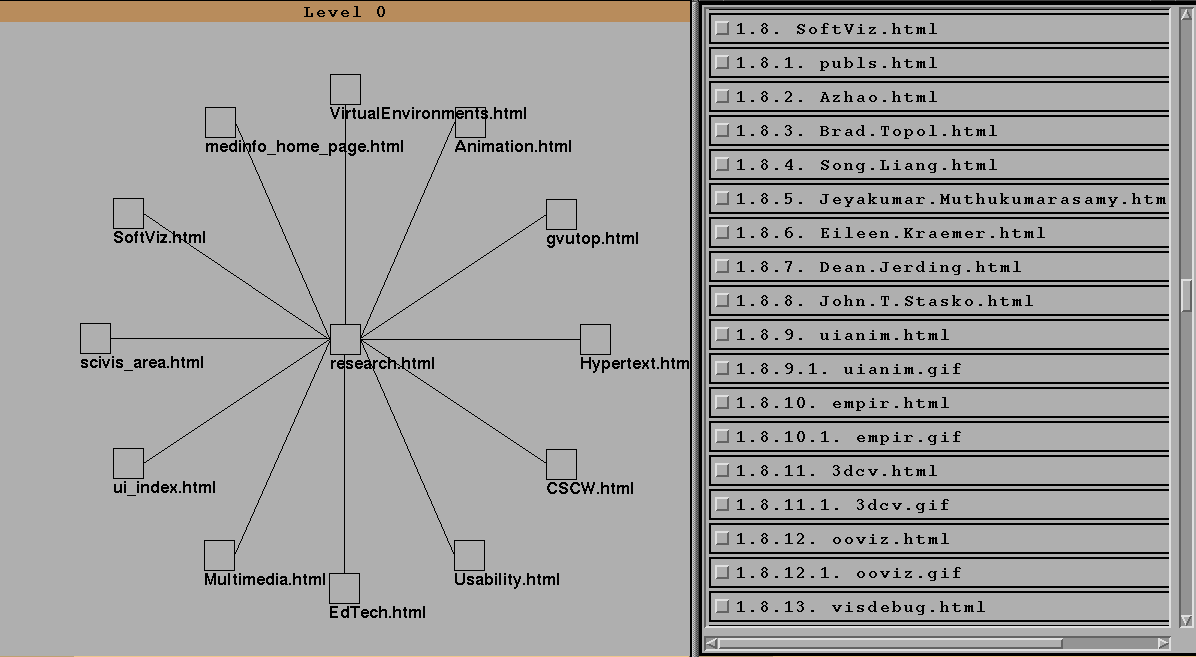

FIGURE 8: The left hand screen shows the top level of the default hierarchy formed for the GVU WWW pages. research.html is the root and the major research areas are shown. The right hand screen shows a book view of a portion of this hierarchy showing research in Software Visualization.

A major drawback of the World-Wide Web is that very few useful semantic attributes are defined for the pages. To create some other meaningful hierarchies, attributes like the topic of the page (whether it is a research page or a personal page, etc.) were inserted manually. (Efforts are underway to incorporate metadata into WWW and hopefully in the near future we can extract all useful information from the WWW automatically.) The left hand screen of Figure 9 represents a treemap view of a hierarchy formed when the initial partitioning is done by the topic of the page. The colors are used to represent the kind of users who created the pages. Green is used to represent Phd students and the color plate indicates that the Phd students are the primary authors of the pages.

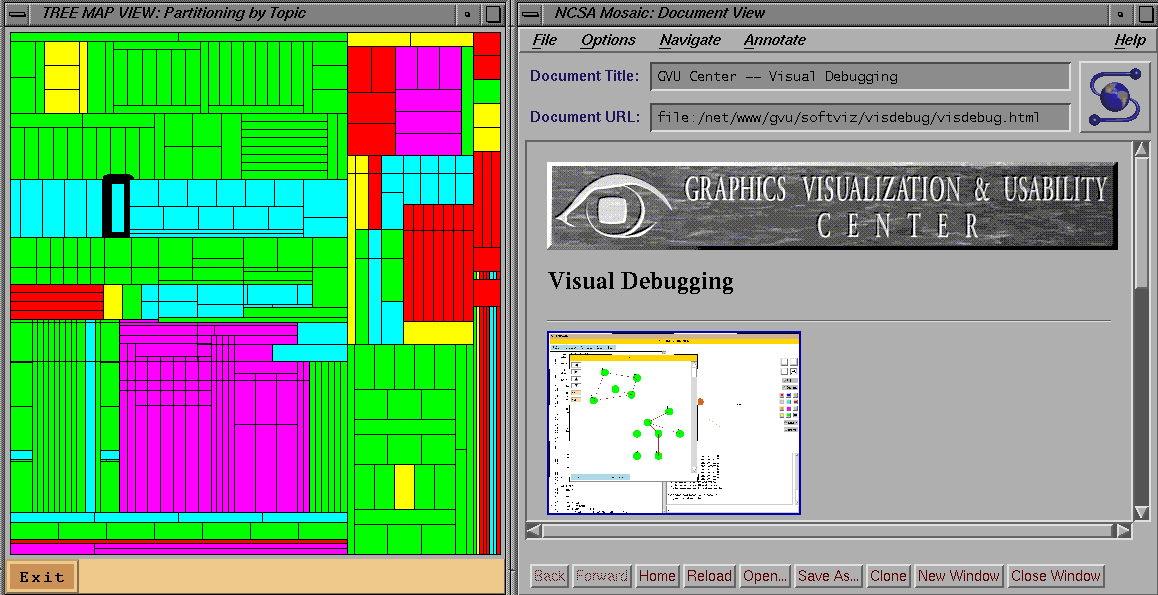

FIGURE 9: The left hand scree shows a Treemap view of a hierarchy of the GVU WWW pages. Initial partitioning is by the attribute Topic . Colors represent different types of authors. The selected node is visdebug.html . The corresponding WWW page is shown on the right.

Multiple hierarchies, each giving a different perspective to the underlying information space can be formed. If a user selects a node in one view, its positions in the other views are also highlighted. Thus, these views help the user in comprehending the data. It should be also noted that the user can go directly to the corresponding WWW page for the selected node. Thus in the Treemap view, the node visdebug.html is highlighted. The corresponding WWW page is shown on the right hand screen of Figure 9.


Once a hierarchy is formed from the original graph structure, the hierarchy can be transformed to other data organizations as well. Visualizations can be formed for these data organizations also. For example, if the original partitioning for forming the hierarchy was done by a quantitative attribute, a linear structure sorted by that attribute can be formed from the subtrees of the root node.

Figure 10 represents a perspective wall [9] view of a linear arrangement of the GVU WWW pages sorted by the last modification times of the files. From the hierarchy whose initial partitioning was by the attribute last-modified-time, the files were divided into partitions based on the time when they were last modified. These partitions were arranged on walls. Only some walls are in the focus at a given time. The user can easily control the walls which are in focus through a scrollbar. Similarly, for the automobile database a Perspective Wall view can be formed where the cars are sorted by the attribute Price.

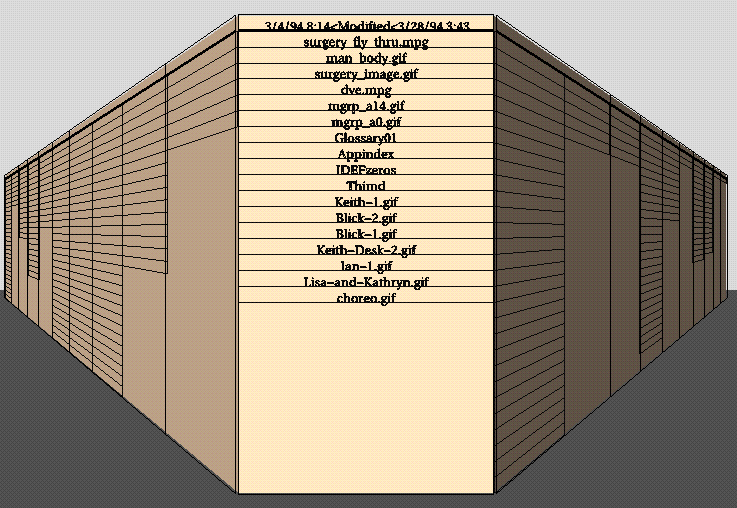

FIGURE 10: A Perspective Wall view showing a linear arrangement of the files based on the last modification time. The different walls show files which were last modified in different time frames. Only some walls are in the focus at a given time.

Other views can also be generated. For example, a tabular view showing information like average price, mileage, etc. for various car models and also such useful statistics for different manufacturers of the cars can be formed by a depth-first traversal of the hierarchical structure whose partitionings are done by the attributes Manufacturer and Car-Model.


Our structural analysis is similar to that described in [2] for identifying hierarchies from hypermedia structures. Although using just structural analysis to identify hierarchies works for hypertext systems with simpler underlying structures, identifying meaningful hierarchies by structural analysis alone is difficult for real-world systems. Content analysis is also essential as is evident from the paper. [6] describes a method to linearize complex hyper-networked nodes to facilitate browsing using a book metaphor. However, this work also uses structural analysis only.

This paper is also related to systems that deal with graphical presentation of information automatically or semi-automatically. Examples include APT [8] and SAGE [16]. However, our information domain is different from these systems - these systems deal with highly structured information. The views that we want to develop are also different. The previous systems generally produced bar diagrams, scatter plots and such graph views.


One of the best ways to comprehend a large complicated information structure is to form multiple simpler structures each highlighting different aspects of the original structure. Our work tries to use this philosophy to make a complex hypermedia system understandable to the user. We believe that by forming various effective views of the underlying space, we would allow the user to better understand the complex information. We give examples of the hierarchization process from two complicated hypermedia systems to illustrate our point. These examples show that our algorithm was able to extract meaningful hierarchies which gave better insights into the complex information spaces.

Future work is planned along the following directions:


This work is supported by grants from Digital Equipment Corporation, Bell South Enterprises, Inc. and Emory University System of Health Care, Atlanta, Georgia as part of the Hypermedia Interface for Multimedia Databases project. We would also like to thank the reviewers of this paper for their useful comments.


G. Battista, P. Eades, R. Tamassia, and I. Tollis. Algorithms for Drawing Graphs: an Annotated Bibliography. Technical report, Brown University, June 1993.

R. Botafogo, E. Rivlin, and B. Shneiderman. Structural Analysis of Hypertexts: Identifying Hierarchies and Useful Metrics. ACM Transactions on Office Information Systems, 10(2):142-180, 1992.

K. Fairchild, S. Poltrok, and G. Furnas. Semnet: Three-dimensional Graphic Representations of Large Knowledge Bases. In R. Guindon, editor, Cognitive Science and its Applications for Human-Computer Interaction. Lawrence Erlbaum, 1988.

G. Furnas and J. Zacks. Multitrees: Enriching and Reusing Hierarchical Structures. In Proceedings of the ACM SIGCHI '94 Conference on Human Factors in Computing Systems, pages 330-336, Boston, Ma, April 1994.

J. Hartigan. Clustering Algorithms. John Wiley and Sons, 1975.

S. Ichimura and Y. Matsushita. Another Dimension to Hypermedia Access. In Proceedings of Hypertext '93 Conference, pages 63-72, Seattle, Wa, November 1993.

B. Johnson and B. Shneiderman. Treemaps: A Space-filling Approach to the Visualization of Hierarchical Information. In Proceedings of IEEE Visualization '91 Conference, pages 284-291, San Diego, Ca, October 1991.

J. MacKinlay. Automating the Design of Graphical Presentation of Relational Information. ACM Transactions on Graphics, 5(2):110-141, April 1986.

J. D. Mackinlay, S. Card, and G. Robertson. Perspective Wall: Detail and Context Smoothly Integrated. In Proceedings of the ACM SIGCHI '91 Conference on Human Factors in Computing Systems, pages 173-179, New Orleans, La, April 1991.

S. Mukherjea and J. Foley. Navigational View Builder: A Tool for Building Navigational Views of Information Spaces. In ACM SIGCHI '94 Conference Companion, pages 289-290, Boston, Ma, April 1994.

S. Mukherjea, J. Foley, and S. Hudson. Interactive Clustering for Navigating in Hypermedia Systems. In Proceedings of the ACM European Conference of Hypermedia Technology, pages 136-144, Edinburgh, Scotland, September 1994.

C. Neuwirth, D. Kauffer, R. Chimera, and G. Terilyn. The Notes Program: A Hypertext Application for Writing from Source Texts. In Proceedings of Hypertext '87 Conference, pages 121-135, Chapel Hill, NC, November 1987.

H. Parunak. Hypermedia Topologies and User Navigation. In Proceedings of Hypertext '89 Conference, pages 43-50, Pittsburgh, Pa, November 1989.

J. Pitkow and K. Bharat. WEBVIZ: A Tool for World-Wide Web Access Log Visualization. In Proceedings of the First International World-Wide Web Conference, Geneva, Switzerland, May 1994.

G. G. Robertson, J. D. Mackinlay, and S. Card. Cone Trees: Animated 3D Visualizations of Hierarchical Information. In Proceedings of the ACM SIGCHI '91 Conference on Human Factors in Computing Systems, pages 189-194, New Orleans, La, April 1991.

S. Roth, J. Kolojejchick, J. Mattis, and J. Goldstein. Interactive Graphic Design Using Automatic Presentation Knowledge. In Proceedings of the ACM SIGCHI '94 Conference on Human Factors in Computing Systems, pages 112-117, Boston, Ma, April 1994.

K. Utting and N. Yankelovich. Context and Orientation in Hypermedia Networks. ACM Transactions on Office Information Systems, 7(1):58-84, 1989.

J. Wernecke. The Inventor Mentor: Programming Object-Oriented 3D Graphics with Open Inventor. Addison-Wesley Publishing Company, 1994.
