Project 4 / Scene Recognition with Bag of Words
The goal of this project is to perform scene recognition with 3 different methods. They are:
- Tiny image representation and nearest neighbor classifier(20.133%)
- Bags of SIFT representation and nearest neighbor classifier(50.400%)
- Bags of SIFT representation and linear SVM classifier(69.400%)

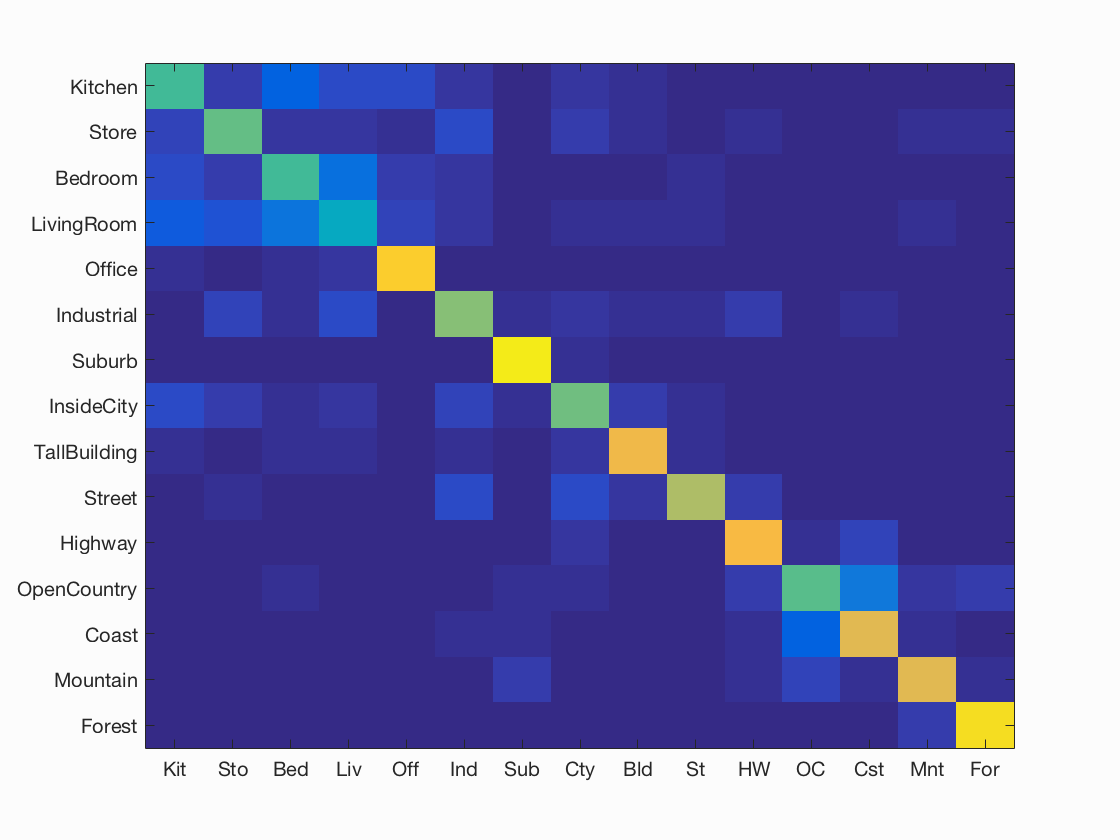

The image shown at the right is the confusion matrix for bag of SIFT representation+linear SVM classifier with vocabulary size=1000, LAMBDA=0.0001
Tiny image representation and nearest neighbor classifier
Tiny image representation simply resize each image to a small fixed, resolution which is 16*16 in my implementation.
This representation discards high frequency and is not invariant to spatial or brightness shifts.
Nearest neighbor classifier finds the nearest training example(K=1), then assigns the test case the label of that nearest neighbor.
But this classifier is vulnerable to training noise and is likely to cause overfitting. So I use K nearest neighbor to alleviate the effect of
training noise. KNN finds the nearest K training examples, and assigns the test case the label which most K neighbors agree on.
The performances with different K neighbors is shown as below, the highest accuracy is 20.133% with k=1.
| K=1 | k=4 | k=7 | k=9 |
|---|---|---|---|
| 20.133% | 18.933% | 18.607% | 18.333% |
Bags of SIFT representation and nearest neighbor classifier
Bag of words models ignore spatial information and builds the histogram based on the frequency of visual words. I build the vocabulary
by clustering a large corpus of local features with kmeans. To build the histogram, I count how many SIFT features fall into each cluster in my vocabulary.
Then I normalized the histogram so that the image size won't significantly change the bag of feature magnitude.
I set vocabulary size to 1000, the performance with different K is shown as below, the highest accuracy is 50.400% with k=9
| K=1 | k=4 | k=7 | k=9 |
|---|---|---|---|
| 49.067% | 48.267% | 50.000% | 50.400% |
Bags of SIFT representation and linear SVM classifier
To decide which category a test case belongs to, I first trained 15 binary,1-vs-all SVMs. Then I evaluated each test case with 15
classifiers, and the classifier which has the largest score wins. The score is calculated by W*X + B, where W and
B are the learned hyperplane parameters.When learning an SVM, I used the function vl_svmtrain(features, labels, LAMBDA) which has a free
parameter LAMBDA. Different values of LAMBDA can have a great effect on the accuracy.
I set vocabulary size to 1000, the performance with different LAMBDA is shown as below, the highest accuracy is 69.400% with lambda=0.0001

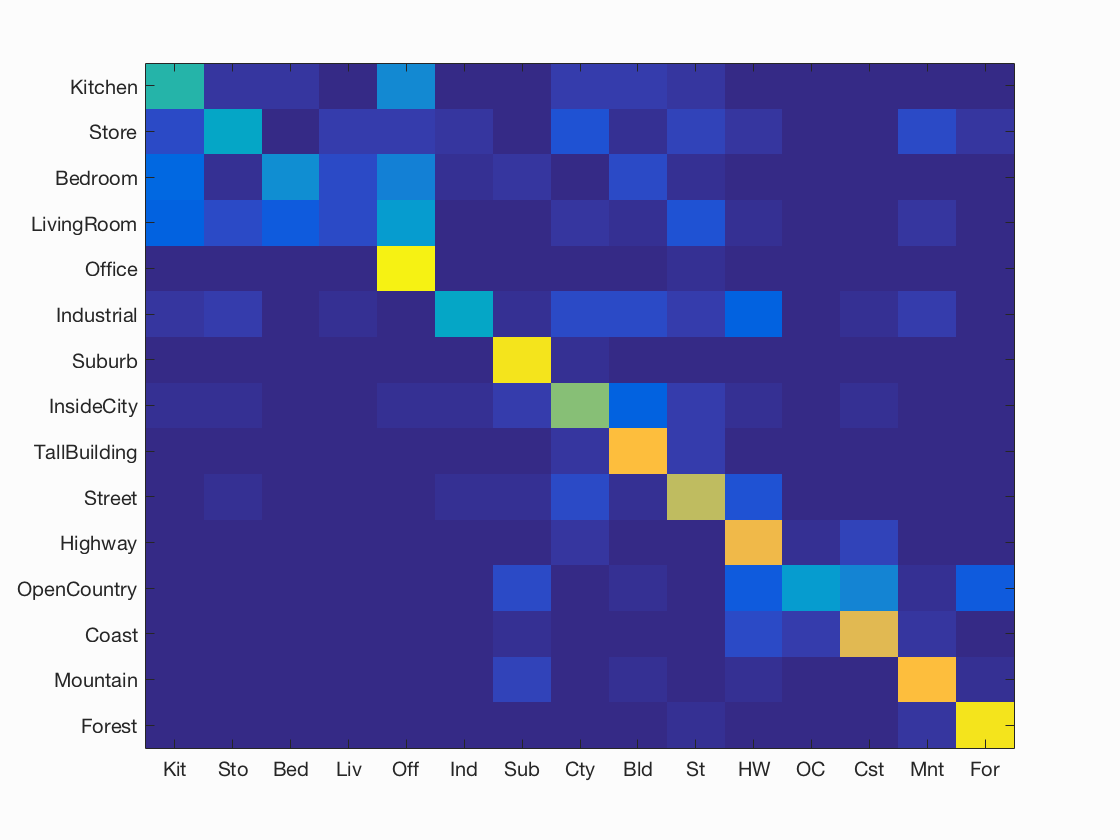

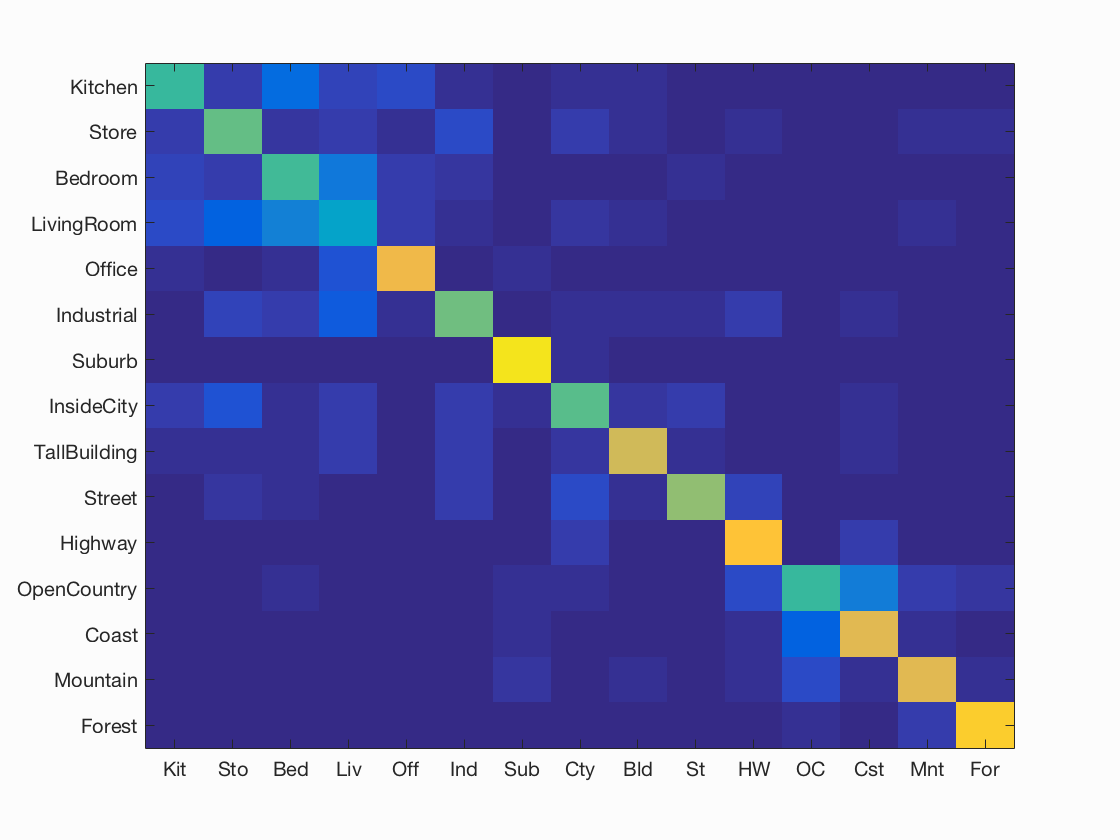

| LAMBDA=0.000001 | LAMBDA=0.00001 | LAMBDA=0.0001 | LAMBDA=0.001 |
|---|---|---|---|
| 66.867% | 66.933% | 69.400% | 62.667% |
 |
 |
 |
 |

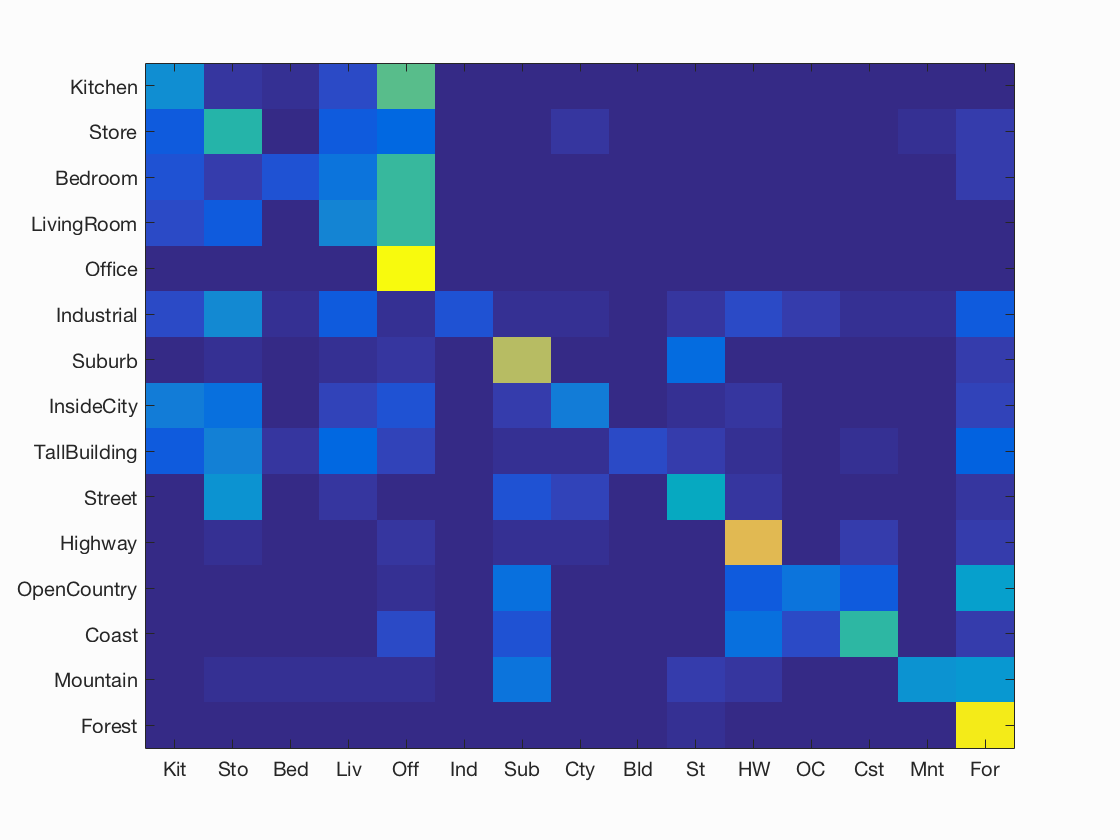

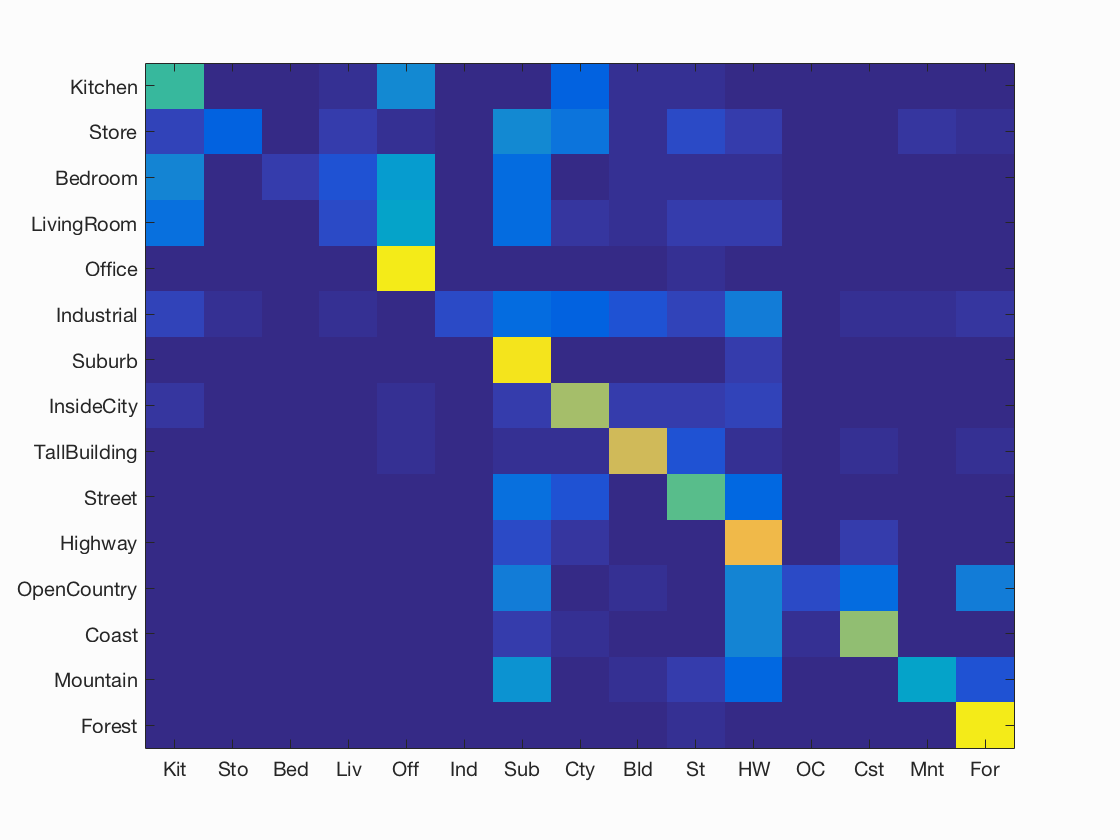

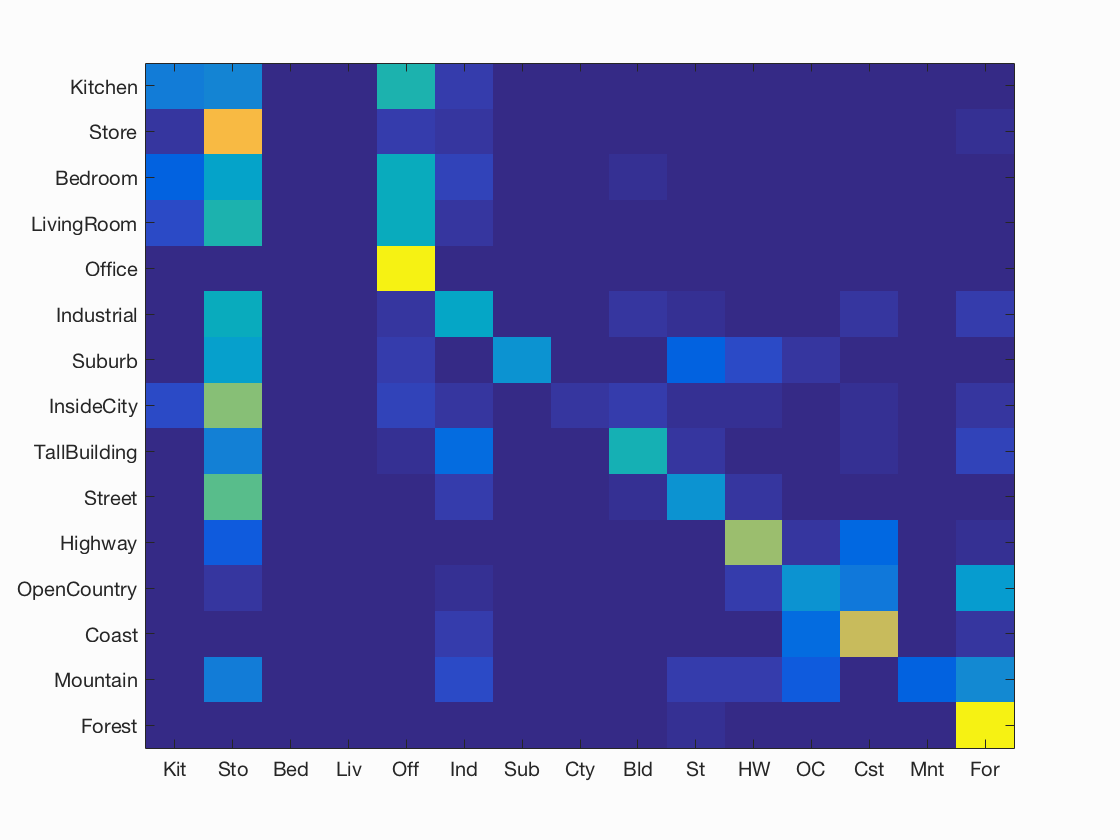

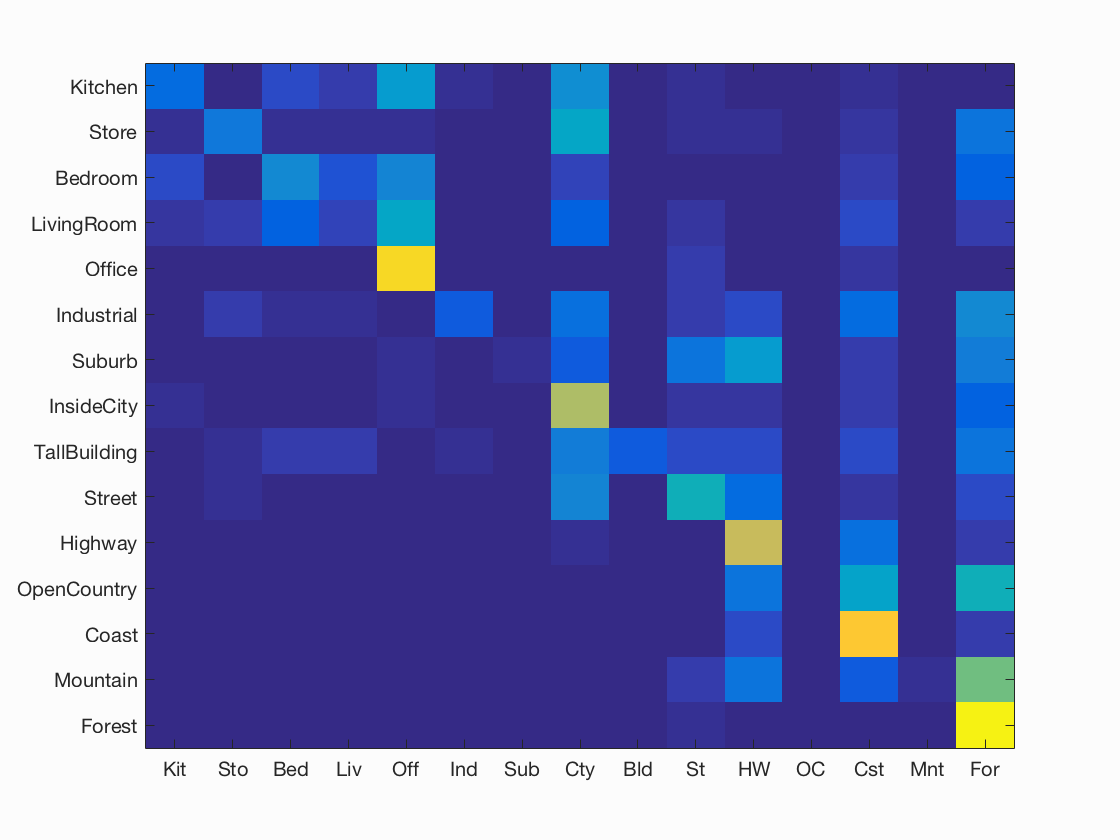

| LAMBDA=0.01 | LAMBDA=0.1 | LAMBDA=1 | LAMBDA=10 |
|---|---|---|---|
| 50.467% | 41.933% | 37.333% | 42.200% |
 |
 |
 |
 |
Extra credit
For extra credit, I experimented with different vocabulary size. The performance with different vocabulary size
is shown as below(bag of SIFT+linear SVM,lambda=0.0001):
| vocab=10 | vocab=20 | vocab=50 | vocab=100 | vocab=200 | vocab=400 | vocab=1000 | vocab=2000 |
|---|---|---|---|---|---|---|---|
| 45.533% | 55.467% | 61.133% | 64.467% | 66.200% | 67.267% | 69.400% | 68.600% |
Results for bag of SIFT representation and linear SVM classifier with vocabulary size=1000, LAMBDA=0.0001
Scene classification results visualization
Accuracy (mean of diagonal of confusion matrix) is 69.400%
| Category name | Accuracy | Sample training images | Sample true positives | False positives with true label | False negatives with wrong predicted label | ||||
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | 0.520 |  |
 |
 |
 |
 Store |
 Industrial |
 LivingRoom |
 Office |
| Store | 0.570 |  |
 |
 |
 |
 Bedroom |
 Kitchen |
 Bedroom |
 Industrial |
| Bedroom | 0.530 |  |
 |
 |
 |
 Kitchen |
 Kitchen |
 Industrial |
 Office |
| LivingRoom | 0.400 |  |
 |
 |
 |
 Kitchen |
 Bedroom |
 Bedroom |
 Kitchen |
| Office | 0.890 |  |
 |
 |
 |
 LivingRoom |
 Industrial |
 LivingRoom |
 LivingRoom |
| Industrial | 0.610 |  |
 |
 |
 |
 Store |
 Highway |
 TallBuilding |
 Bedroom |
| Suburb | 0.960 |  |
 |
 |
 |
 OpenCountry |
 InsideCity |
 Street |
 InsideCity |
| InsideCity | 0.590 |  |
 |
 |
 |
 Street |
 Store |
 Industrial |
 Bedroom |
| TallBuilding | 0.800 |  |
 |
 |
 |
 Kitchen |
 Industrial |
 Office |
 Bedroom |
| Street | 0.680 |  |
 |
 |
 |
 Store |
 Office |
InsideCity |
 Industrial |
| Highway | 0.820 |  |
 |
 |
 |
 Mountain |
 Coast |
 Coast |
 Coast |
| OpenCountry | 0.550 |  |
 |
 |
 |
 Coast |
 Mountain |
 Coast |
 Highway |
| Coast | 0.780 |  |
 |
 |
 |
 Highway |
Highway |
 OpenCountry |
 OpenCountry |
| Mountain | 0.780 |  |
 |
 |
 |
 Store |
 Forest |
 Coast |
OpenCountry |
| Forest | 0.930 |  |
 |
 |
 |
 OpenCountry |
 Mountain |
 Mountain |
Mountain |
| Category name | Accuracy | Sample training images | Sample true positives | False positives with true label | False negatives with wrong predicted label | ||||
